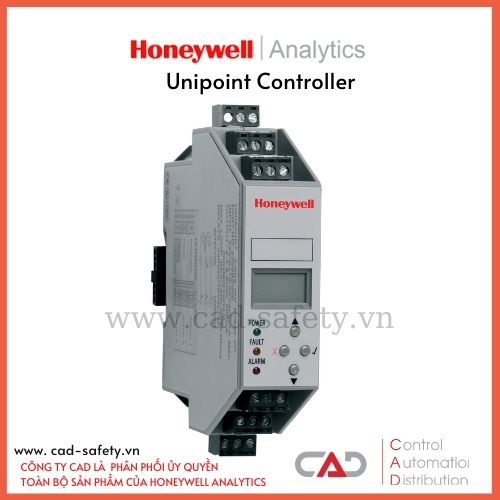

Product Overview

Two versions of Unipoint are available; one for mV bridge, catalytic bead type, flammable gas detector and the other for any 2 or 3 wire 4-20mA type gas detector. Each Unipoint is easily installed onto the DIN rail via a special socket (provided) that also interconnects power to adjacent units. With removable terminal connectors, individual Unipoint controllers can be easily changed without disturbing other devices.

By clipping together multiple Unipoints small to medium sized monitoring solutions can be realised. Each unit includes built-in audio/visual alarms, three programmable alarm relays and a fault relay. Gas concentration and system status is displayed on the backlit LCD and each controller is fully user programmable via an intuitive, push button operated menu system. Configuration menus can be password protected to prevent unauthorised access. In addition remote inputs allow accept, reset and inhibit of alarms without the need to open the enclosure that the Unipoint is mounted in.

Inputs

• 3 wire mV bridge e.g. Sensepoint or Signalpoint flammable gas detectors
• 2 wire, 4-20mA, loop powered e.g. Sensepoint or Signalpoint toxic or Oxygen gas detectors
• 3 wire, 4-20mA, source output e.g. Sensepoint XCD flammable, toxic and Oxygen gas detectors

Outputs

• Relay: Alarm1, Alarm2, Alarm3 ( SPCO / 3A, 240VAC / 28VDC)
• Fault ( SPCO / 3A, 240VAC / 28VDC - non inductive load)

Approvals

• EMC/RFI EN: 50270
• Electrical Safety: EN61010, UL61010b
• Performance: ATEX measuring function EN60079-29-1 SIRA10ATEX8243X
• Other: CE, TUV
